I. Maintenance Platform/Tool/Equipment Preparation Requirements

1. Platform requirements:

Rubber blanket repair workbench (workbench needs to be grounded), anti-static wrist band and grounding.

2. Equipment requirements:

Constant temperature soldering iron (350℃ – 380℃), pointed soldering iron tip are used for soldering small patches such as chip resistors and capacitors; heat gun, BGA rework station are used for chip/BGA disassembly and soldering; multimeter with soldering steel pin and heat-shrinkable T bush is used for easy measurement (Fluke15b+ is recommended); Oscilloscope (Agilent recommended), network cable (requirements: Internet connection, stable network)

3. Requirements for test tools:

APW12 power supply: APW12_12V-15V_V1.2 and power adapter cable (self-made: use thick copper wires to connect the power supply at positive and negative poles and the hash board. It is recommended to use 4AWG copper wires with a length of 60cm or less) for the hash board. Use the hash board tester of the V2.2010 control board. The positive and negative poles of the tester need to be installed with discharge resistors. It is recommended to use a cement resistor of 25 ohms and more than 100W.

4. Maintenance auxiliary materials/tool requirements:

Solder paste column M705, flux, board washing water with absolute alcohol; board washing water is used to clean up the solder residue after repair; thermal gel (specification: Fujipoly SPG-30B) is used to smear the surface of the chip after repair ; tin-planting steel mesh, solder absorption wire, solder ball (the ball diameter is recommended to be 0.4mm); when replacing a new chip, you need to tin the chip pins and then solder to the hash board, and then lock large heat sinks after applying thermal gel evenly on the chip surface.

5. Common maintenance spare material requirements:

0402 resistance (0R, 51R, 10K, 4.7K,); 0402 capacitor (0.1uf, 1uf)

The above repair tools are necessary. Of course, you can also choose the convenient Bitmain antminer hash board repair bundle.

II. Maintenance Requirements

1. Pay attention to the operation method when replacing the chip. After replacing any accessories, the PCB board shall have no obvious deformation. Check the replacement parts and the surrounding parts for open circuit and short circuit issues.

2. The maintenance operators must have certain electronic knowledge, more than one year of maintenance experience, and be proficient in BGA/QFN/LGA package soldering technology.

3. After repairing, the hash board must be tested for more than two times to be OK before it can pass!

4. Check whether the tools and hash board testers can work normally, determine the maintenance station to test software parameters, test fixture versions, etc.

5. In the test of repairing and replacing the chip, the chip needs to be tested first, and then the function test shall be performed after passing. The function test must ensure that the small heat sink is welded qualified. When installing the large heat sink, the surface of the chip must be evenly coated with thermal gel and the cooling fan shall be at full speed. When using the chassis to dissipate heat, 2 hash boards should be placed at the same time to form an air duct. The single-sided test of the production should also ensure that the air duct is formed (important).

6. When measuring the signal, use 4 fans as assistance for heat dissipation, and the fans shall maintain full speed.

7. When powering on the hash board, user must first connect the negative copper wire of the power supply, then the positive copper wire of the power supply, and finally plug in the signal cable. When removing, the order of installation must be reversed. First remove the signal cable, then remove the positive copper wire of the power supply, and finally remove the negative copper wire of the power supply. If the user do not follow this order, it is very easy to cause damage to R233, R232 (not all chips can be found). Before testing the pattern, the repaired hash board must be cooled down before testing,  otherwise it may cause PNG.

8. To replace a new chip, printing pins and soldering paste are required to ensure that the chip is pre-soldered and then soldered to the PCBA for repair

III. hash board Tester Making and Matters Needing Attention

The supporting fixture of the hash board tester should satisfy the heat dissipation of the hash board and facilitate the measurement of signals.

1. When using the 19 Pro test fixture for the first time, you need to use FPGA (write conversion file) to update the test fixture to decompress the fpga file, copy all the files to the SD card, then insert it into the test fixture card slot, power on for about 1 minute, and wait for the instruction light flashes more than 3 times to complete the update, then remove the SD card. Note: If the update is not completed, it may cause the test fixture to prompt the same chip error every time.

S19 Pro hash board

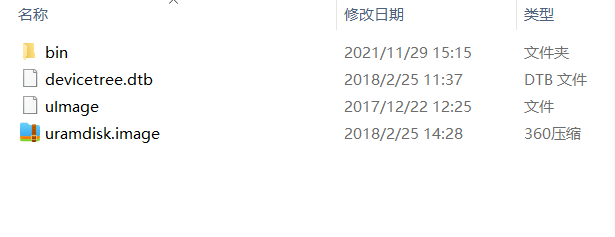

2: Please directly decompress the conversion file and copy it to the SD card. (Please format the SD card before copying)

S19 Pro hash board

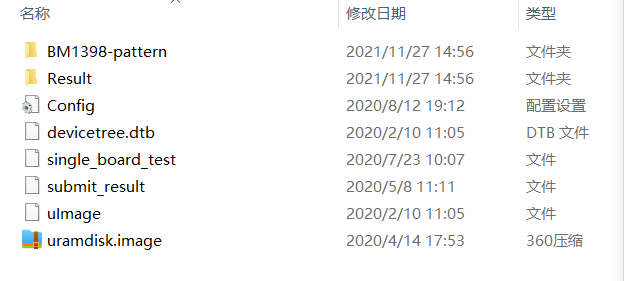

3: After the conversion file is written, format the SD card, decompress the test file, and copy it to the SD card. Then insert the test fixture card slot, power on until the fixture screen displays, indicating that all your files are installed successfully. Now you can test the hash board.

repair hash board

IV. Principle Overview

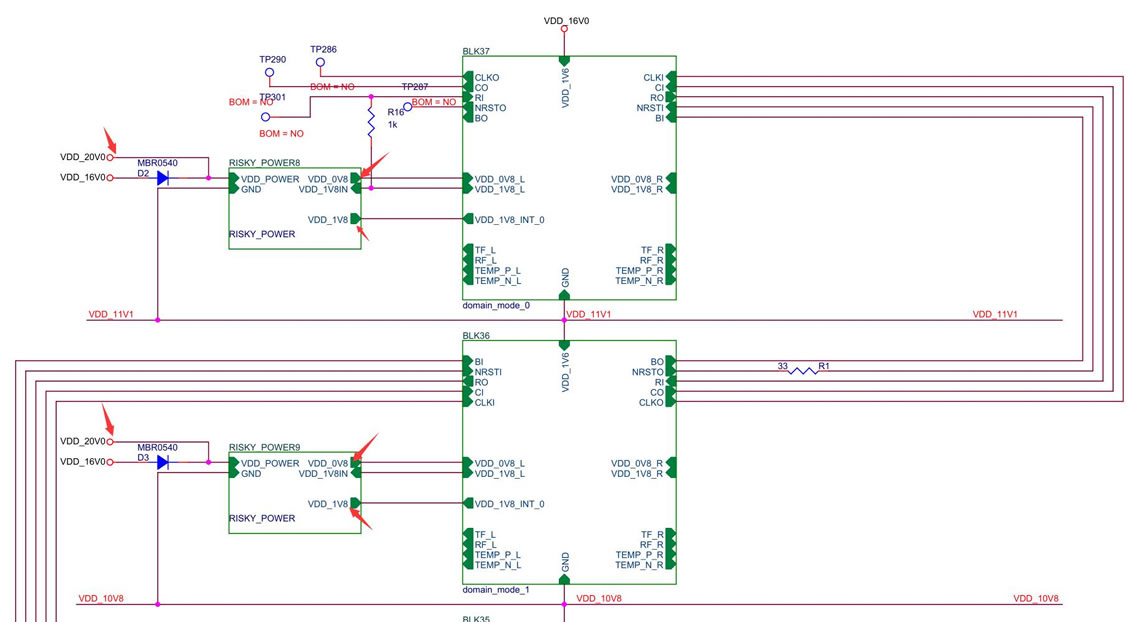

1. Working structure of S19 Pro hash board:

The hash board is composed of 114 BM1398 chips, which are divided into 38 groups (domains), and each group is composed of 3 ICs; the operating voltage of the BM1398 chip used in the S19 Pro hash board is 0.32V; for the 38th, 37th, 36th, 35th, 34th, 33rd, 32nd group (7 groups in total), LDO is powered by the 19V output from the boost circuit Q9 and outputs 1.8V. The 31th group – the first group are supplied by VDD12.6V through the LDO to provide 1.8V, and the voltage of each domain retreated is reduced by 0.32V. All 0.8V is provided by the 1.8V output of this domain via LDO, as shown in Figure 4-1;

structure of S19 Pro hash board

Figure 4-1

structure of S19 Pro hash board

Figure 4-2

repair manual

Figure 4-3

repair manual

Figure 4-4

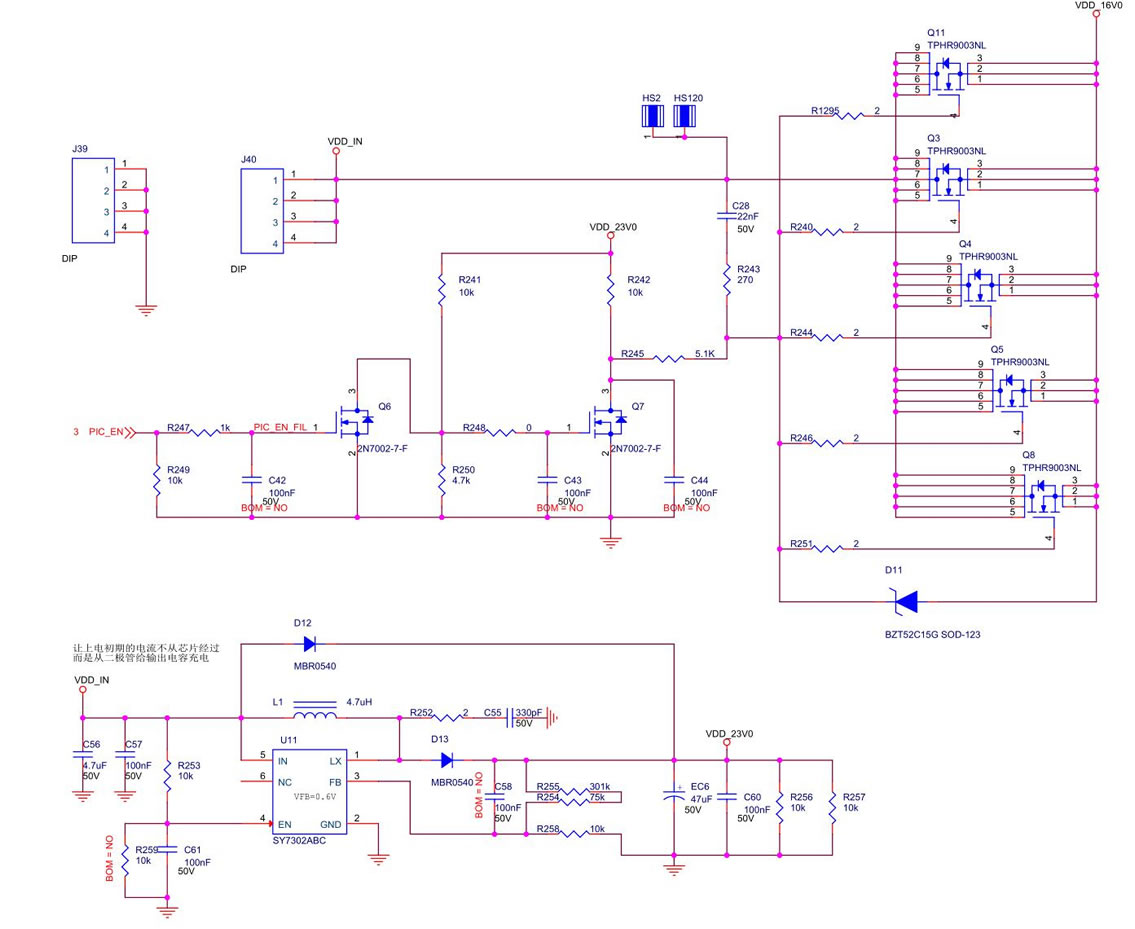

2. S19 Pro hash board boost circuit:

The boost circuit transfers the 12.6V powered by the power supply to 20V, as shown in Figure 4-5.

S19 Pro hash board boost circuit

Figure 4-5

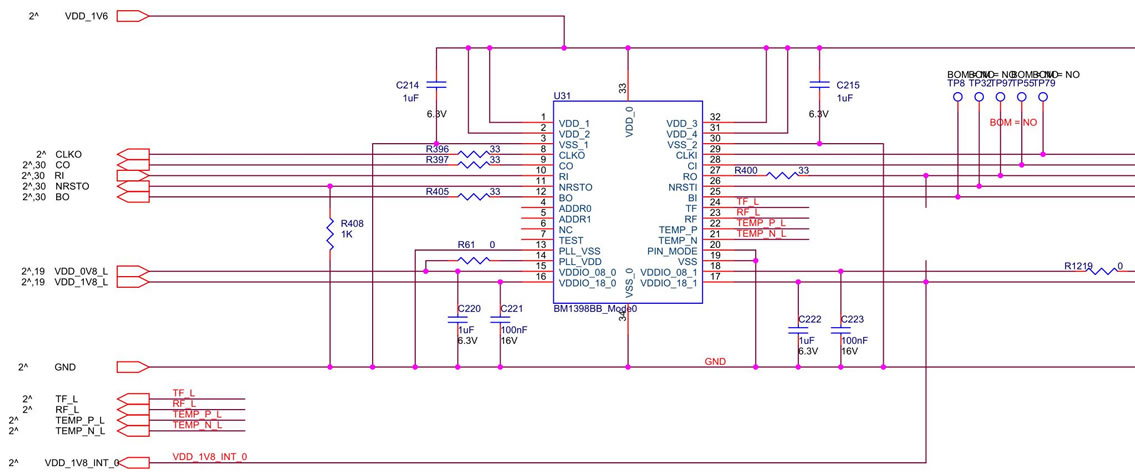

3. Signal trend of S19 Pro chip:

1) CLK (XIN) signal flow direction: generated by Y1 25M oscillator, transmitting from chip 01 to chip 114; voltage of 0.7V-1.3V;

2) TX (CI, CO) signal flow direction: from IO port 7 pin (3.3V) to IC U4 through level conversion, and then transmitting from chip 01 to chip 114; the voltage is 0V when the IO cable is not inserted, and the voltage is 1.8V during operation;

3) RX (RI, RO) signal flow direction: from chip 114 to chip 01, return to the signal cable terminal pin 8 through U2 and then return to the control board; when the IO signal cable is not inserted, the voltage is 0.3V, and the voltage will be 1.8V during operation;

4) BO (BI, BO) signal flow direction: from chip 01 to chip 114; the multimeter measurement value is 0V;

5) RST signal flow direction: the RST signal flow is from pin 3 of the IO port to IC U3 through level conversion, and then is transmitted from chip 01 to chip 114 after level conversion ; if no IO signal cable is inserted and equipment is in standby, voltage is 0V, and the voltage is 1.8V when operating;

4. Whole miner architecture:

The whole miner is mainly composed of 3 hash boards, 1 control board, APW12 power supply, and 4 cooling fans, as shown in Figure 4-6.

Whole miner architecture

Figure 4-6

V. Common Faults and Troubleshooting Steps of the hash board

1. Phenomenon: single board test detection chip is 0 (PT1/PT2 stations)

Step 1: check the power output first, please check the Figure 5-1.

repair guide for S19 Pro hash board

Figure 5-1

Step 2: to check the voltage output in the voltage domain

The voltage of each voltage domain is about 0.32V. If there is 16V power supply, generally it has domain voltage. The priority is given to measure the output of the power supply terminal of the hash board and check whether the MOS is short-circuited (measure the resistance between pins 1, 4 and 8). If 16V has power supply but no domain voltage, continue to check.

repair guide for S19 Pro hash board

Figure 5-2

Step 3: to check the PIC circuit

Measure whether there is output on the second pin of U6 and the voltage is about 3.3V; if yes, please continue to troubleshoot the problem; if there is no 3.3V, please check the connection status of the hash board tester cable and the hash board is OK, and reprogram the PIC.

PIC circuit

Figure 5-3

PIC circuitFigure 5-4

PIC programming steps:

1. PIC program programming on the hash board.

Program: 20191226-PIC1704-BM1398.hex

Download the programming tool: PICkit3, pin 1 of the PICkit3 cable corresponds to pin 1 of J2 on the PCB, and pins 1, 2, 3, 4, 5, and 6 need to be connected.

PIC program programming on the hash board

Figure 5-5

2. Programming software:

Open MPLABIPE and select device: PIC16F1704, click power to select the power supply mode, then click operate. The first step: select “file” to find the .HEX file to be programmed; the second step: click “connect” to connect normally; the third step: click the “program” button, and after completion, click “verify” to prompt the verification to prove that the programming is successful.

Programming software

Figure 5-6

Programming software
Programming software

Figure 5-7

Step 4: check the boost circuit output, C69 in the Figure 5-8 can measure 20V voltage.

boost circuit outputFigure 5-8

boost circuit outputFigure 5-9

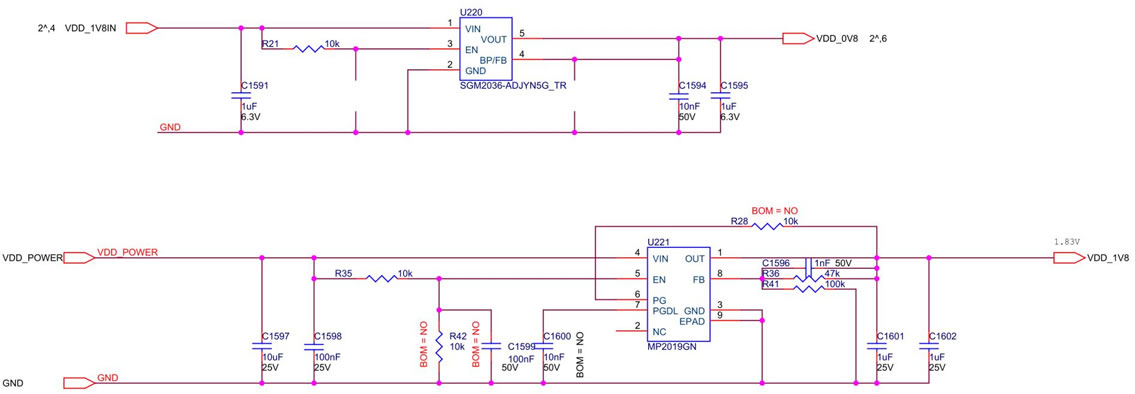

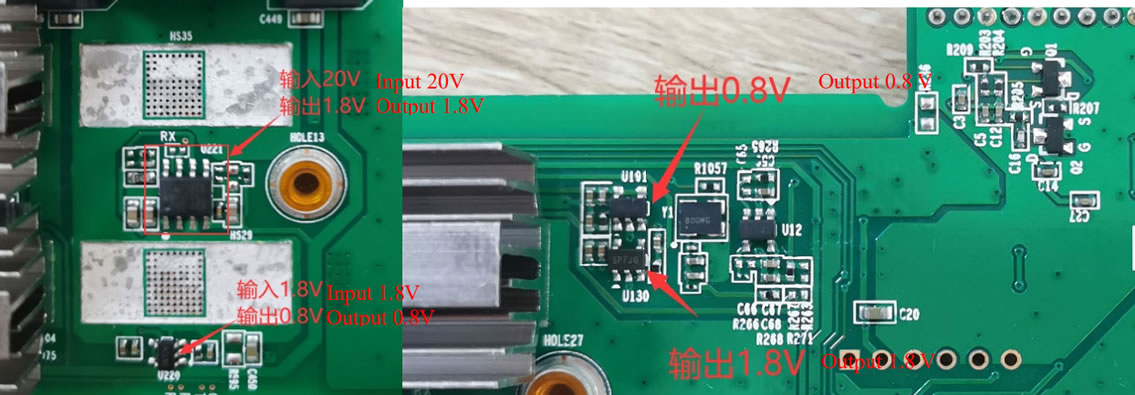

Step 5: check the output of each group of LDO 1.8V or PLL 0.8V

each group of LDO 1.8V
each group of LDO 1.8V

Figure 5-10

repair tutorial

repair tutorialsFigure 5-11

Step 6: check the chip signal output (CLK/CI/RI/BO/RST)

Refer to the voltage value range described by the signal trend. If the measurement encounters a large deviation of the voltage value, it can be compared with the measured value of the adjacent group to determine.

repair manual

Figure 5-12

2. When the EEPROM NG is displayed on the LCD screen of the hash board tester, check whether the welding of U10 is normal;

3. If the ‘PIC sensor NG’ is displayed on the LCD screen of the hash board tester and the tested temperature is abnormal, then follow the steps below to troubleshoot:

A) Check whether the 4 resistors of R217, R218, C22 and C23 are welding abnormally, and check whether the welding of PIN of U5 is normal;

B) Check whether the four temperature sensors of U5, R216, R219, R220, U7, R221~R223, U8, R224~R226, U9, R229~R231 and the matching resistance welding are abnormal, the location of the temperature sense is as shown in Figure 4-4 and 5-13, the temperature sensor is all located on the back of the PCB, the resistance is located on the front and back of the PCB, and whether the temperature sensor 3.3V power supply is normal;

Check the welding quality of the chip which connects sensor and the small heat sink. The deformation of large heat sink material will cause poor heat dissipation of the chip and affect the temperature difference.

repair manual

Figure 5-13

3. Phenomenon: Single board detection chip is not complete (PT1/PT2 stations)

a) LCD display ASICNG: if (0), first measure the total voltage of the measuring domain and the boost circuit 20V is normal, and then use the shortcircuit probe to short-circuit the RO test point and the 1V8 test point between the first and the second chip, and then operate the program to find the chip. Check the serial port log, if 0 chip is still found at this time, it will be one of the following situations:

a-1) Use a multimeter to measure whether the voltages at the 1V8 and 0V8 test points are 1.8V or 0.8V. If not, it indicates that the 1.8V or 0.8V LDO circuit of this domain is abnormal, or the two ASIC chips of this domain is not soldered well; most conditions of this phenomenon are caused by short circuits of 0.8V, 1.8V patch filter capacitors (measure the resistance of the patch filter capacitors related to the front and back of the PCBA).

a-2) Check whether the circuits of U2, U3 and U4 are abnormal, such as resistance welding, etc.

a-3) Measure the resistance of R232 or R233 with a multimeter to check if it is within 1 ohms and the reading will not jump randomly. If not, please replace these two resistors.

a-4) Check if the pins of the first chip are soldered well (it was found during repair that the pins are tinned observing from the side, but the pins are not stained with tin at all when the chip is removed).

b) If one chip can be found in step a), it indicates that the first chip and the previous circuit are good. Use a similar method to check the subsequent chips. For example, short-circuit the 1V8 test point and the RO test point between the 38th and 39th chips. If the log can find 38 chips, the first 38 chips have no problem; if you still find 0 chips, check the 1V8 first; if it’s normal, it means that there is a problem with the chips after 38. Continue to investigate with dichotomy until the problematic chip is found. Assuming that there is a problem with the Nth chip, when the 1V8 and RO between the N-1th and Nth chips are short-circuited, N-1 chips can be found, but when the 1V8 and RO between the Nth and N+1th chips are short circuited, the entire chip cannot be found.

c) LCD display ASIC113: (Reporting 113), it means that the hash board can detect 114 chips at 115200 baud rate, but only 113 chips are found at 12M baud rate, and one chip could not be found at 12M baud rate;

Repair method: Using the dichotomy method, short-circuit the 1V8 test point and the RO test point between the 38th and 39th chips with the shortcircuit probe. If the log can find 38 chips, there is no problem with the first 38 chips; if short-circuiting the 47th chip, but the log reports 46th, it indicates that the 47th chip cannot be detected, and there is no problem with the visual inspection. Generally, the 47th chip shall be replaced;

repair guide for S19 Pro hashboard

Figure 5-15

d) LCD display ASICNG: (X, a certain chip is fixedly reported), there are two situations:

d-1) The first case: the test time is basically the same as the good board (usually the value of X will not change each time you test) (test time refers to the time from when the start test button is pressed to the time when the result of ASICNG: (X) is displayed on the LCD). This situation is likely to be caused by the abnormal resistance welding of the front and rear CLK, CI, and BO of the Xth chip, so users shall focus on these 6 resistors. The small probability is due to X-1, X, X+1, that is, among the three chips, the following pins abnormal welding conditions of the chip occur:

repair guide for S19 Pro hashboard

Figure 5-16

d-2) The second case: the test time is almost twice as long as the good board (sometimes the value of X will change every time you test, and sometimes X=0); at this time, the log usually has the following information (the red number is not 13 sometime, depending on which seat the hash board tester is connected to); during the test, assume that the domain voltage of all the fields in front of the abnormal position is almost less than 0.3V, and the domain voltage of the back fields are almost all higher than 0.34V. This situation is caused by the chip not being soldered well, usually 1.8V, 0.8V, RXT, CLK are not soldered well. It is recommended to directly measure the domain voltage to locate which domain is the problem. The 1V8 and RO short-circuit method used in section a) can also locate the abnormal position;

repair guide for S19 Pro hashboard

Figure 5-17

5. Phenomenon: Single board Pattern NG, indicating that the response nonce data is incomplete (PT2 station)

Pattern NG is caused by the large difference between the characteristics of the chip and other chips. At present, it is found that the chip die is damaged, so just replace the chip. According to the log information, the replacement rules are as follows:

If the appearance of the chip is not damaged, just replace the chip with the lowest response rate in each domain. The following figure shows one of the test logs, it can be seen from the log that the response rate of four chips asic[57][58][61][63][64] is low. Replace the 61th (62th) chip.

PS: Special attention shall be paid to that the numbers of domain and asic start from 0

repair guide for S19 Pro hashboardFigure 5-18

repair guide for S19 Pro hashboardFigure 5-19

6. Phenomenon: The chip test is OK, PT2 function test serial port does not stop (long-distance running)

Repair method: during the PT2 test, check the serial port print log. When the serial port starts to operate for a long time, use a short-circuit probe to short-circuit RO&1.8V. The short-circuit starts from the first chip. If the serial port stops long-term operating after the short circuit, the first chip is OK. According to this method, find the chip that still has the long-term operating failure after a certain chip is short-circuited. Generally, it is caused by a certain chip damaging, so just replace it;

chip testFigure 5-20

7. Phenomenon: PT1 chip test is OK, PT2 function test always reports a certain chip NG;

Repair method: check the appearance, measure the chip capacitor or resistance in front, usually it’s caused by poor chip soldering or a chip capacitor, resistor damaging or abnormal resistance;

VI. Control Board Problem Causing the Following Problems

1. The whole miner does not work

1) Check whether the voltages at several voltage output points are normal. U8 can be disconnected first if 3.3V is short-circuited. If it is still short-circuited, the CPU can be unplugged for measurement. For other voltage abnormalities, generally replace the corresponding converter IC.

2) If the voltage is normal, please check the welding status of the DDR/CPU.

3) Try to update the flash program with SD card;

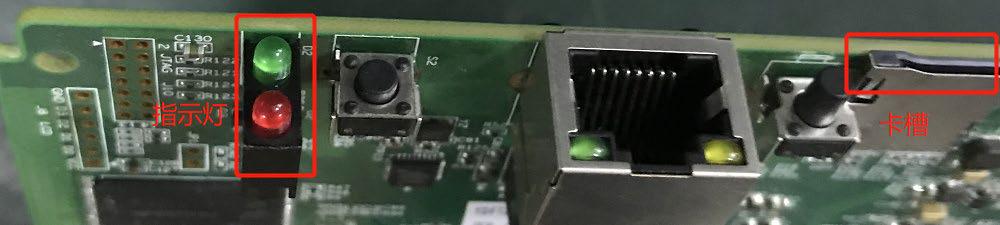

If the miner of which the control board has been reflashed needs to start normally, the following two steps are required:

a) After the card recovery is passed, the green LED indicator will be always on, and the power shall be restarted;

b) Wait for 30s after powering on again (the time course of turning on OTP).

c) OTP (One Time Programmable) is a memory type of MCU, which means one-time programmable: after the program is programmed into the IC, it cannot be changed and cleared again;


(1) Sudden power failure during OTP or time of less than 30s will cause the control board to fail to open the OTP function. As for the issue that the control board cannot start (not networked), the user needs to replace the U1 (main control IC FBGA of control board), and U1 can no longer be used in 19 series after replacement.

(2) For the control board with OTP function turned on, U1 cannot be used on other series of models;

S19 Pro minerFigure 6-1

2. The whole miner cannot find the IP

Probably, the IP cannot be found due to abnormal operation. Refer to the first point for troubleshooting.

Check the appearance and welding of the network port, network transformer T1, and CPU.

3. The whole miner cannot be upgraded

Check the appearance and welding of the network port, network transformer T1, and CPU.

4. The whole miner fails to load the hash board or has less links

A. Check the cable connection status.

B. Check the parts of the control board corresponding to the chain.

C. Check the wave soldering quality of the plug-in pins and the resistance around the plug-in interface.

S19 Pro miner

Figure 6-2

VII. Failure Phenomenon of the Whole Miner

Common failures:

IP cannot be detected, the number of fans is abnormal, and the chain is abnormal. If there is an abnormality in the test, follow the monitoring interface and test LOG prompts for maintenance.

1) Fan display is abnormal – check whether the fan is working normally, whether the connection with the control board is normal, and whether the control board is abnormal.

2) Less link: Less link refers to that among the 3 boards, 1 piece is missing. In most cases, there is a problem with the connection between the hash board and the control board. Check the cable to see if there is an open circuit. If the connection is OK, the user can test the single board PT2 to check if it can pass the test. If it passes the test, it can basically be determined that the problem is on the control board. If the test fails, use the PT2 repair method to repair it.

3) Abnormal temperature: Generally, it’s due to the temperature is high. The PCB temperature set by our monitoring system cannot exceed 90 degrees. If it exceeds 90 degrees, the miner will alarm and fail to work normally. It is usually caused by high ambient temperature for the miner to not be able to work normally. Abnormal fans operation will also cause abnormal temperature.

4) Cannot find all the chips (boot can be operated, but the hash rate r is 2/3 or 1/3 of the normal value). The number of chips is not enough: if the number of chips is not enough, you can refer to PT2 for testing and repair.

S19 Pro miner

Figure 7-1

5) After operating for a period of time, there is no hashrate, the connection to the mining pool is interrupted, then check the network;

S19 Pro miner

Figure 7-2

6) Status of normal miner;

S19 Pro minerFigure 7-3

S19 Pro minerFigure 7-4

7) One hash board has low hashrate: As for this situation, you can log in to the IP through the Putty software to observe whether the domain working voltage of this board is normal and whether the NONCE return is normal. You can repair it according to Putty LOG prompt.

8) How to use putty: tail-f /tmp/nonce.log-NONCE print command tail -f /tmp/adc.log-domain voltage print command

The specific operations are as follows:

1. Open putty, enter the IP of the miner in question and click OPEN.

puttyFigure 7-5

2. Enter the user name, password and test command to check the NONCE response status and the status of voltage domain. If the NONCE and domain voltage are abnormal, user can perform measurement and maintenance based on the printed abnormal chip.

steps of puttyFigure 7-6

VIII. Other Matters Needing Attention

Maintenance flowchart

Maintenance flowchartFigure 8-1 Maintenance flowchart

● Routine inspection: First, visually inspect the hash board to be repaired, observe whether there is PCB deformation or scorching. If yes, it must be processed first; whether there are obvious burnt marks on the parts, collision offset parts or missing parts, etc.; secondly, after the visual inspection is passed, the impedance of each voltage domain can be tested first to detect whether there is a short circuit or an open circuit. If yes, it must be dealt with first. Furthermore, check whether the voltage of each domain is about 0.36V.

● After the routine test is passed (the short-circuit test of the general routine test is necessary to avoid the chip or other materials being burnt due to the short circuit when the power is turned on), the chip test can be performed with the hash board tester, and the positioning can be determined according to the test result of the hash board tester.

● According to the displayed results of the hash board tester detection, starting from near faulty chip, check the chip test points (CO/NRST/RO/XIN/BI) and voltages such as VDD0V8 and VDD1V8.

● According to the signal flow, except for the RX signal is reversely transmitted signal (from No. 114 to No. 1 chip), several of the signals including CLK CO BO RST are forward transmission (1-114), and the abnormal fault point can be found through the power supply sequence.

● When locating the faulty chip, the chip needs to be welded again. The method is to add flux around the chip (preferably no-clean flux), and heat the solder joints of the chip pins to a dissolved state to prompt the chip pins and pads to re-run in and collect the tin, so as to achieve the effect of tinning again. If the fault remains the same after re-soldering, you can directly replace the chip.

● The repaired hash board can be judged as a good product with more than two passes when testing with the hash board tester. For the first time, after replacing the parts, wait for the hash board to cool down, use the hash board tester to test, and after the test is passed, set it aside and then cool it down. For the second time, after a few minutes when the hash board cools down, test again.
